Vectraplex ECG
Can you detect an AMI in real-time?

Cardiac Electrical Biomarker CEB
A continuous biomarker for the detection of ECG
changes suggestive of AMI

Non-Invasive

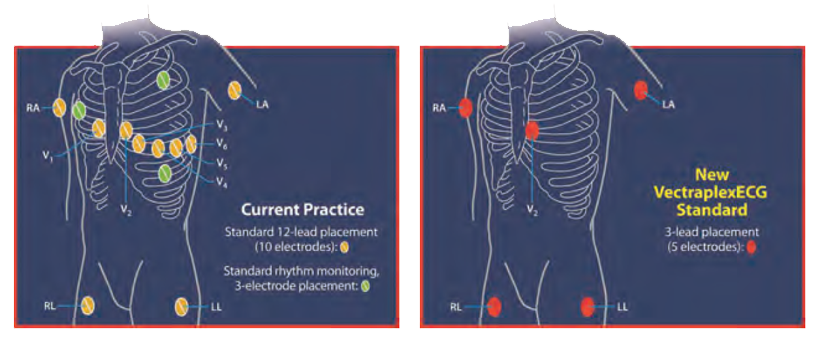

Derives a 22-Lead ECG (EU) - (15-Lead ECG - US)
with only 5 electrodes

22-Lead ECG = 12-Lead, right heart, posterior and
Vectorcardiogram/XYZ leads and vector loops

15-Lead ECG = 12-Lead ECG and
Vectorcardiogram/XYZ Leads and vector loops

Produces a Standard 12-Lead ECG with 10 Electrodes

Potentially Reduce Electrode Placement Error
